How a 50-Ton Smart AGV Transformed Aluminum Logistics

April 2, 2026

From “Sweat and Steel” to Smart Logistics: The Aluminum Challenge

In the high-stakes world of non-ferrous metal processing, the gap between a smooth production line and a bottleneck often comes down to logistics. For our client—a major player in the aluminum industry—moving massive aluminum ingots was a daily battle.

The scenario was familiar but dangerous: huge, 50-ton ingots sitting in storage, needing to be moved to processing stations with absolute precision. The old method? Traditional forklifts and diesel trucks. It was low efficiency, manual, risky, with high exhaust emissions, and frankly, it wasn’t “Industry 4.0.”

The pain points were clear:

  • Safety First: Maneuvering 50 tons of metal manually is a recipe for accidents.
  • Rhythm Disruption: Human operators get tired; machines don’t. The production line needed a consistent, unbreakable rhythm.
  • The Precision Gap: Downstream machining requires centimetre-perfect placement.

The client didn’t just need a vehicle; they needed a smart logistics partner. They needed Hangzhou HENSEN Technology.

The HENSEN Solution: Engineering a 50-Ton Beast

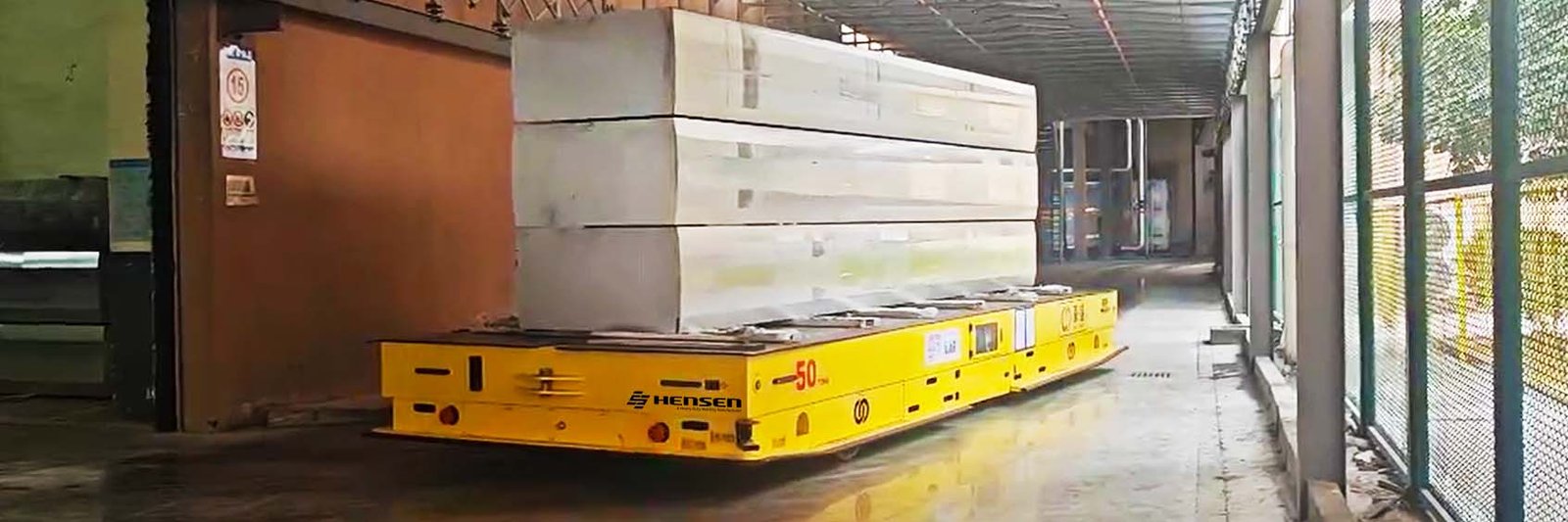

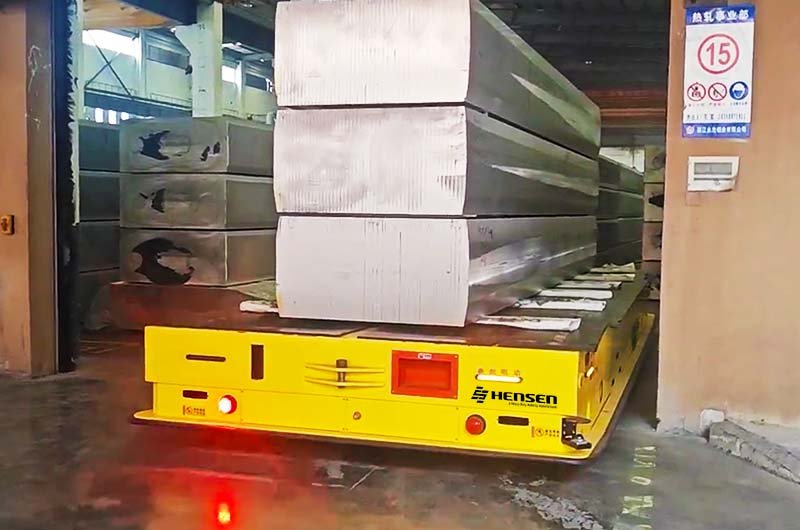

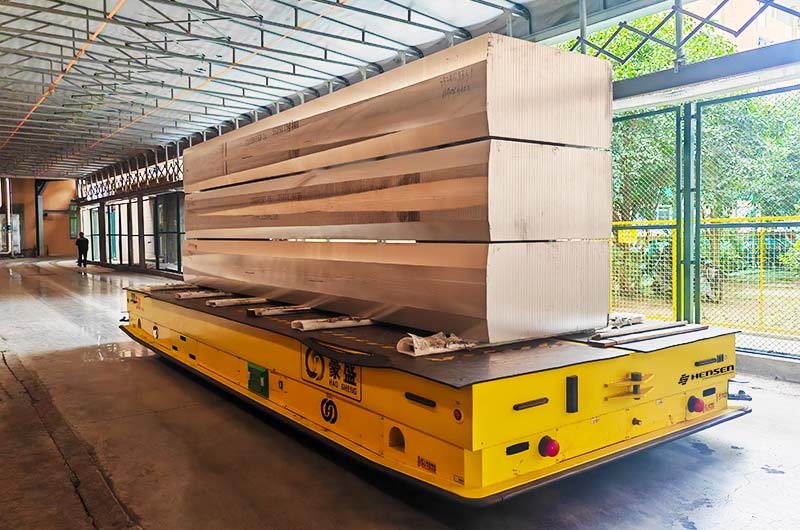

We didn’t just sell them an AGV; we engineered a solution. Leveraging over 20 years of R&D, HENSEN deployed a custom 50-ton Laser Navigation Heavy-Duty AGV. This wasn’t off-the-shelf; it was built from the ground up to handle the specific brutality of the aluminum industry.

Here is how we turned a logistical nightmare into a streamlined automated process:

1. Built Like a Tank (But Smarter)
To carry 50,000kg without flexing or failing, we designed a chassis using high-strength I-beams and channel steel. Topped with a steel plate, it’s a rigid platform that doesn’t flinch under pressure.

2. Omnidirectional Agility
Heavy doesn’t mean clumsy. We equipped this beast with 8 polyurethane differential steering wheels. This allows the AGV to move in any direction—sideways, forwards, or rotating in place. It climbs gradients and navigates tight workshop corners.

3. Surgical Precision with Laser Navigation
The magic lies in the guidance. Using an advanced Laser Navigation System, the AGV achieves a positioning accuracy of ±15mm. Even with 50 tons on its back, it docks perfectly every single time, ensuring the aluminum ingot is ready for machining the moment it arrives.

Visualizing the Upgrade: Efficiency Comparison

To truly understand the impact of this project, let’s look at the numbers. The shift from manual to automated handling isn’t just a tech upgrade; it’s a complete operational transformation.

Comparison: Manual Forklift vs. HENSEN 50T AGV

FeatureManual Forklift OperationHENSEN 50T Laser AGV
Positioning Accuracy±50mm – 100mm (Variable)±15mm (Consistent)
Operational Uptime8 Hours (with breaks/fatigue)24/7 (8-10h battery + charging)
Safety RiskHigh (Human error factor)Near Zero (Sensors & Radar)
NavigationVisual/Manual SteeringLaser SLAM (Autonomous)
IntegrationStandalone / DisconnectedFully Integrated with WCS/MES

Key Takeaway: The AGV doesn’t just move the load; it digitizes the movement, providing data and consistency that manual labor cannot match.

The Result: A Safer, Faster, Smarter Factory

The deployment of the HENSEN AGV has completely rewritten the workflow for our client.

  • Zero Accidents: With ultrasonic radar, safety touch edges, and emergency stops, the “danger zone” of heavy lifting has been eliminated.
  • Seamless Flow: The AGV acts as the heartbeat of the line, delivering ingots exactly when and where they are needed.
  • Labour Liberation: Skilled workers are no longer stuck driving manually; they are monitoring systems and managing quality.

Frequently Asked Questions (FAQ)

Here are answers to common questions regarding heavy-duty AGV implementation in industrial settings.

1. How does a 50-ton AGV handle maintenance compared to traditional forklifts?
Unlike internal combustion forklifts that require engine oil changes and transmission repairs, our electric Heavy-Duty AGVs are largely maintenance-free. The primary wear parts are the polyurethane wheels, which are designed for long life. The system uses Lithium batteries, which require no watering or acid maintenance, significantly reducing Total Cost of Ownership (TCO).

2. Can this AGV navigate in a busy factory with moving people?
Yes. Safety is paramount. Our AGVs are equipped with multi-layer safety systems, including ultrasonic obstacle avoidance and safety touch edges. If a person or object is detected in the path, the AGV will automatically slow down and stop. It will only resume movement once the path is clear.

3. What happens if the power goes out?
The HENSEN AGV is designed for industrial reliability. In the event of a power loss or emergency, the vehicle is equipped with fail-safe braking systems. Furthermore, the Lithium battery management system allows for opportunistic charging, ensuring the vehicle maintains enough charge to complete critical tasks or return to a safe charging zone.

4. Is the navigation system difficult to install? Do I need to modify my floor?
Not necessarily. Our Laser Navigation (SLAM) technology is map-based and does not require magnetic tapes or wires to be embedded in the floor. This makes installation faster and allows for easier route changes in the future if your production line layout evolves.

Ready to Automate Your Heavy Logistics?

Don’t let heavy loads slow you down. Whether it’s aluminum, steel, or wind turbine blades, HENSEN Technology has the custom solution for you.
Contact us today to discuss your 50-ton handling needs.
